| Nominal Pipe Size |

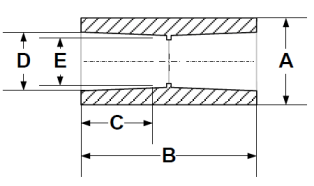

A
Length
|
B Length |
C
Socket Length
|
D
Socket Entrance
|
E
Socket Bottom
|
| 1/2″ CTS | 1.100″ | 2.250″ | 0.625″ | .585″ (+.010/-.007) | .575″ (+.010/-.007) |
| mm | 27.94 | 57.15 | 15.88 | 14.86 | 14.61 |
| 1/2″ IPS | 1.200″ | 2.000″ | 0.575″ | .810″ (+.005/-.010) | .804″ (+.005/-.026) |
| mm | 30.48 | 50.80 | 14.61 | 20.57 | 20.42 |
| 3/4″ CTS | 1.400″ | 0.750″ | 0.625″ | .835″ (+/-.010) | .825″ (+/-.010) |
| mm | 35.56 | 44.45 | 15.88 | 21.21 | 20.96 |
| 3/4″ IPS | 1.400″ | 1.750″ | 0.625″ | 1.020″ (+/-.008) | 1.012″ (+.008/-.012) |
| mm | 35.56 | 44.45 | 15.88 | 25.91 | 25.70 |
| 1″ CTS | 1.850″ | 1.550″ | 0.625″ | 1.075″ (+/-.008) | 1.070″ (+.008/-.012) |
| mm | 46.99 | 39.37 | 15.88 | 27.30 | 27.18 |
| 1″ IPS | 1.850″ | 1.550″ | 0.685″ | 1.275″ (+/-.008) | 1.267″ (+.008/-.012) |
| mm | 46.99 | 39.37 | 17.40 | 32.38 | 32.18 |
| 1 1/4″ IPS | 2.300″ | 2.000″ | 0.875″ | 1.620″ (+/-.008) | 1.612″ (+.008/-.016) |
| mm | 58.42 | 50.80 | 22.23 | 41.15 | 40.94 |
| 1 1/2″ IPS | 2.500″ | 2.050″ | 0.875″ | 1.860″ (+/-.010) | 1.849″ (+.010/-.020) |
| mm | 63.50 | 52.07 | 22.23 | 47.24 | 46.96 |
| 2″ IPS | 3.000″ | 2.250″ | 0.875″ | 2.335″ (+/-.010) | 2.324″ (+.010/-.020) |
| mm | 76.20 | 57.15 | 22.23 | 59.31 | 59.03 |
| 3″ IPS | 4.250″ | 2.700″ | 1.000″ | 3.455″ (+/-.015) | 3.439″ (+.015/-.025) |
| mm | 107.95 | 68.58 | 25.40 | 87.76 | 87.35 |
| 4″ IPS | 5.900″ | 3.400″ | 1.125″ | 4.450″ (+/-.015) | 4.434″ (+.015/-.035) |
| mm | 149.86 | 86.36 | 28.58 | 113.03 | 112.62 |
